This advanced LED Lamp Connector features 384 output channels and supports 30 banks of 8 programmable scenes, offering full manual control with 16 sliders. It includes a built-in microphone for music-triggered lighting effects, DMX in/out via 3-pin XLR, and MIDI control for banks, chases, and blackout. With power output of DC 9–12V (100mA min), users can record up to 6 programmable chases with adjustable fade time and speed. The auto mode is easily managed through a fade time slider, making it perfect for dynamic lighting environments.
Controllers

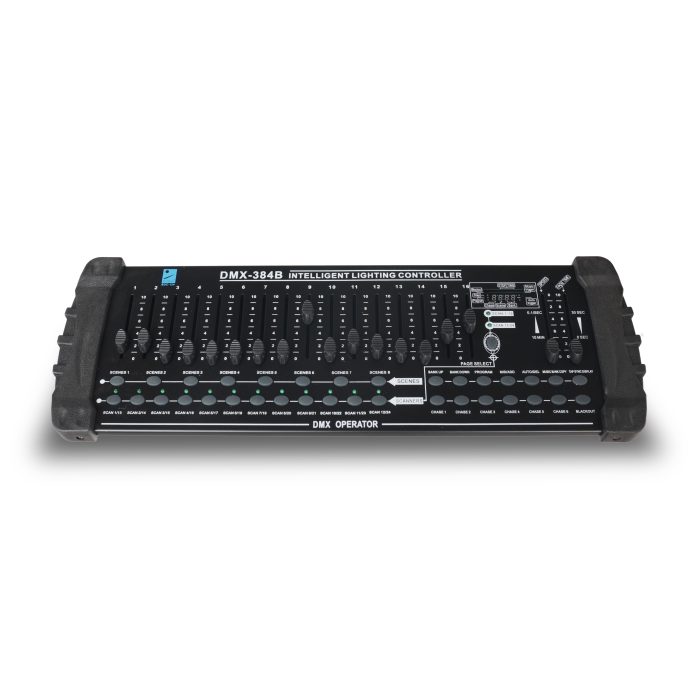

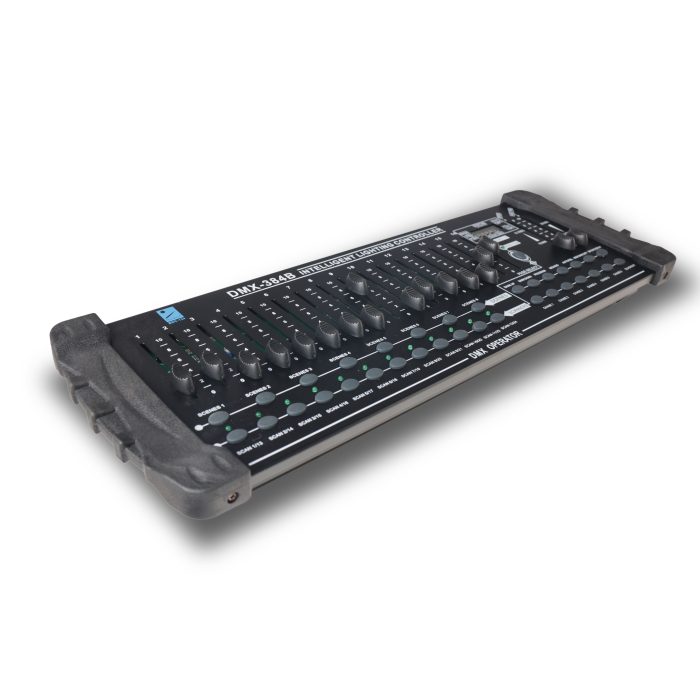

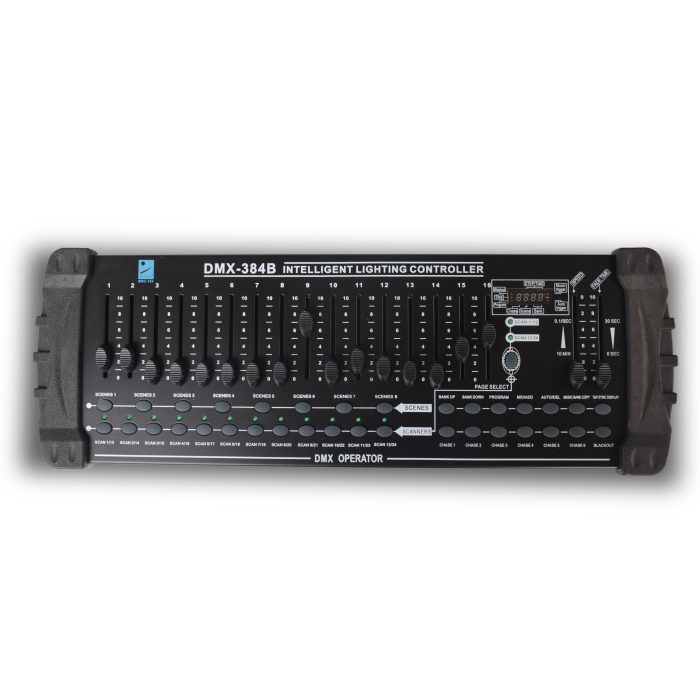

BDC-124 384 Channel Controller
- LED Lamp connector
- Total of 384 output channels
- LED function & program display
- Power output : DC 9-12V 100ma min
- 30 banks of 8 programmable scenes
- 16 Slider for manual control of channels
- Built in microphone for music triggering

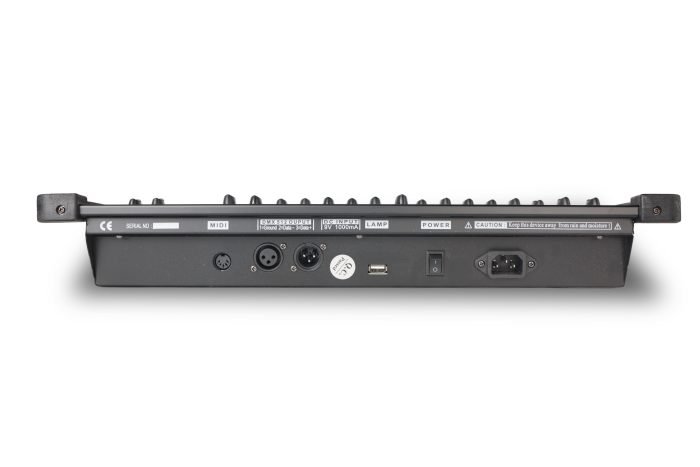

- DMX in/out : 3 pin male / female XLR
- Midi control over banks, chases & blackout
- Auto mode program controlled by fade time slidder
- Record upto 6 programmable chases with fade time and speeds
